Dimensions (Inside):

Any length X either 90-3/4” or 96-3/4” width; choice of 84”, 90”, 96”, 102” or 108” height

Exterior:

Smooth .040” pre-painted white aluminum; extruded aluminum corner posts, roof radius, and upper and lower side rails

Roof:

Mill-finished aluminum roof

Side Posts:

2” extruded aluminum Z-posts on 16” centers on front and non-curtain sidewall

Roof Bows:

2” extruded aluminum H-beams on 24” centers

Floor:

3/16” treadplate steel floor

Interior Lining:

1/2” full-height plywood liner (on front walls and 3/8” on non-curtain sidewall)

Rear Door:

Premium 3/4” roll-up rear door

Understructure:

4” formed steel channel crossmembers on 12” center and 6” steel structural channel longitudinal runners.

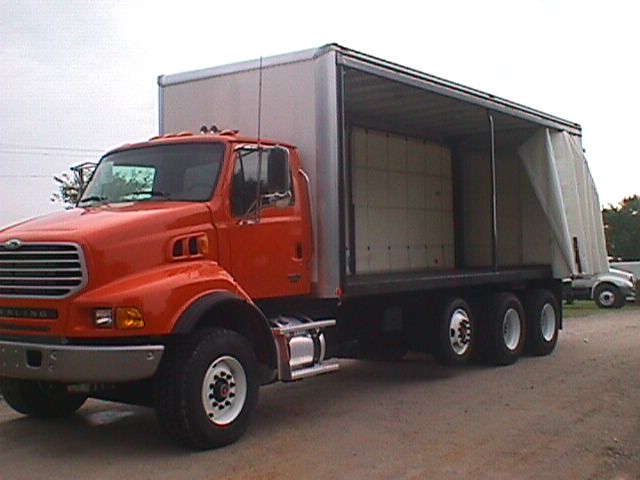

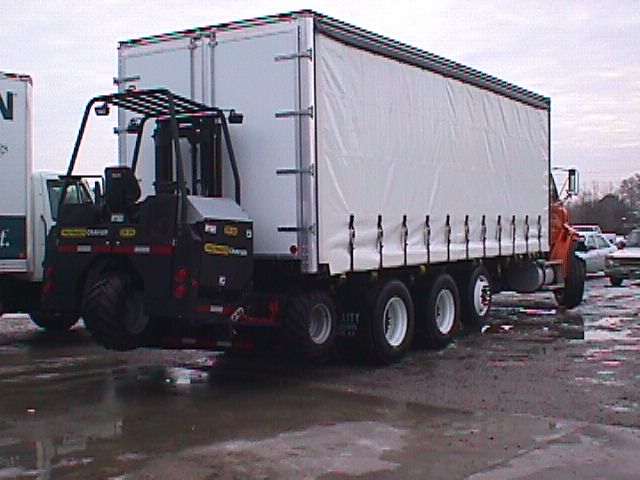

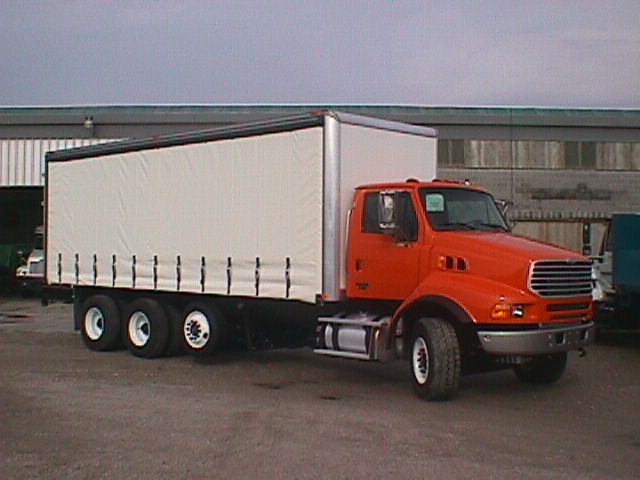

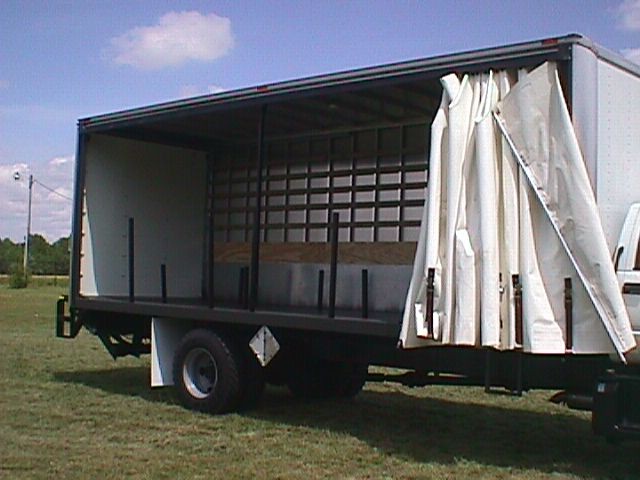

Curtains:

Curbside or Roadside or both - curtains constructed of 28 oz. Metric, single sheet, 100% polyester, PVC coated with acrylic lacquered top coated (both sides), 2 x 2 basket weavepattern, reinforced end pockets and post locations, 3” top hem and 9” bottom, three horizontal webs and 24” on centers, and stainless steel buckles and flat hooks on 24” centers

• Liftgates or slide-out ramp

• Translucent roof

• Double full-open rear doors

• Fork-lift reinforcement

• Apitong floor

• Single step bumper

• Grab handles

• Treadplate steel floor

• Dome lights

• Variety of logistical restraints

• Back-up alarm
