ROLL-TITE BODIES

Rolltite tarping system is a retractable cover that can protect your load from the elements. The system can be open and closed in minutes. The flexibility of the system gives access to a load from top, back, and sides. The system consists of an aluminum extruded track mounted on the outside rails of the platform on both curbside and roadside. Bow carriages would travel the track and support the tarpaulin that would cover the entire platform and open from the rear or the front to uncover the platform. An aluminum bulkhead would be secured to the platform and is constructed to withstand the heavy winds that it is subject to and to also protect the driver incase a load moves forward. Rear access can be provided with a pull-up flap or double full-open rear doors. The tarp is a high tenacity 22 oz. polyester yarn fabric coated with PVC, and topcoated with an acrylic lacquer.

Standard Specifications & Equipment:

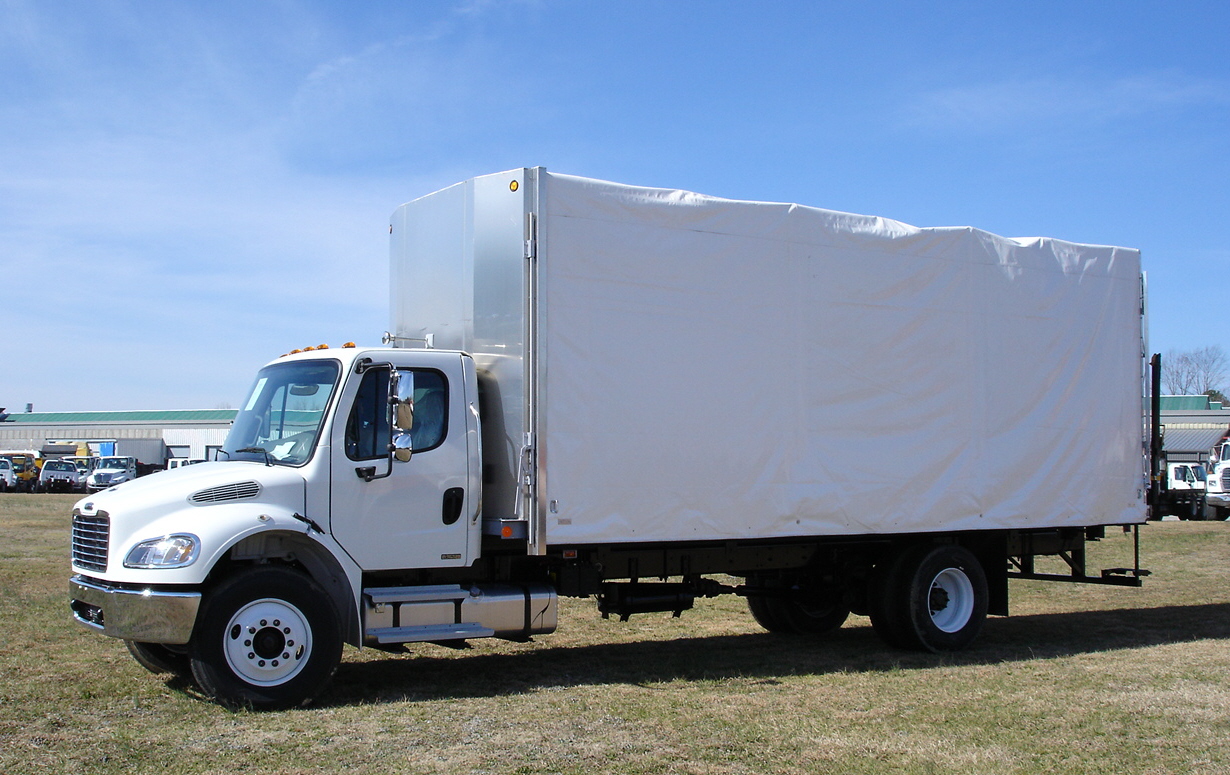

Roll-tite 008

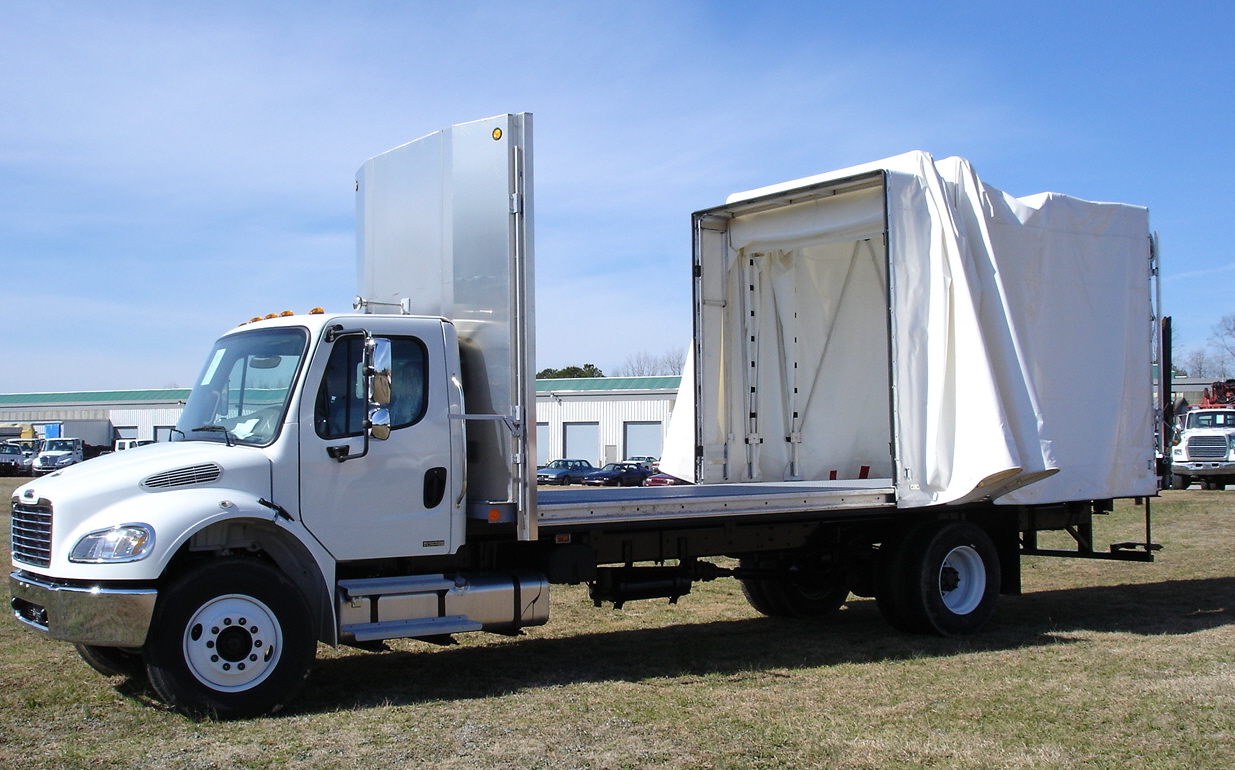

Roll-tite 012

MORE ROLL-TITE PICS

Dimensions (Inside):

Any length X either 90-3/4” or 96-3/4” width; choice of 84”, 90”, 96”, 102” or 108” height

Exterior:

Smooth .040” pre-painted white aluminum; extruded aluminum corner posts, roof radius, and upper and lower side rails

Roof:

Mill-finished aluminum roof

Side Posts:

2” extruded aluminum Z-posts on 16” centers

Roof Bows:

2” extruded aluminum H-beams on 24” centers

Floor:

1-1/8” laminated oak hardwood floor

Interior Lining:

3/8” full-height plywood liner (sides and front walls)

Rear Door:

Premium 3/4” roll-up rear door

Understructure:

4” formed steel channel crossmembers on 12” center and 6” steel structural channel longitudinal runners.

Popular Options & Accessories:

  • Liftgates or slide-out ramp
  • Translucent roof
  • Double full-open rear doors
  • Fork-lift reinforcement
  • Single step bumper
  • Grab handles
  • Treadplate steel floor
  • Dome lights

Call today to discuss your unique transportation needs with one of our experienced representatives!
