Dimensions (Inside):

Any length X either 90-3/4” or 96-3/4” width; choice of 84”, 90”, 96”, 102” or 108” height

Exterior:

Smooth .040” pre-painted white aluminum; extruded aluminum corner posts, roof radius, and upper and lower side rails

Roof:

Mill-finished aluminum roof

Side Posts:

2” extruded aluminum Z-posts on 16” centers

Roof Bows:

2” extruded aluminum H-beams on 24” centers

Floor:

1-1/8” laminated oak hardwood floor

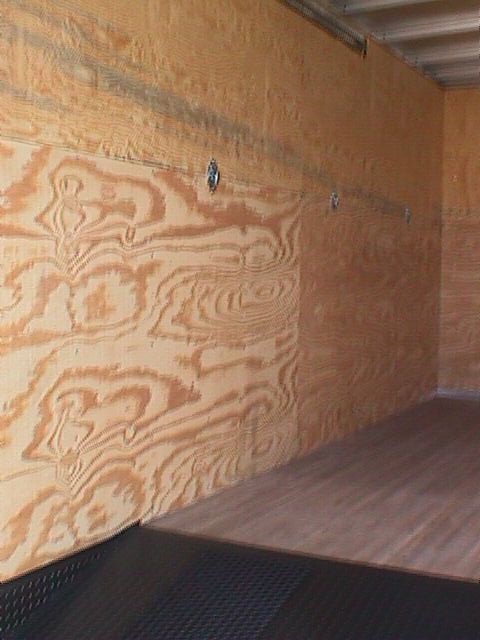

Interior Lining:

3/8” full-height plywood liner (sides and front walls)

Rear Door:

Premium 3/4” roll-up rear door

Understructure:

3” formed steel channel crossmembers on 12” center and 6” steel structural channel longitudinal runners.

Beavertail:

4’ long - 4” structural channel longitudinal supports reinforced to chassis frame

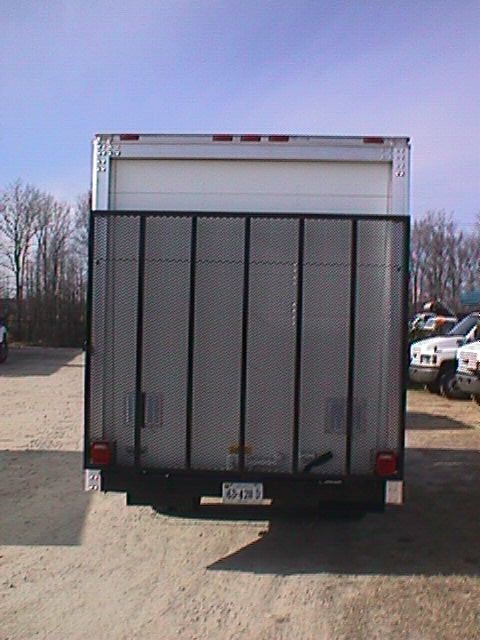

Ramp/Gate:

72” long permanent fold-down with torsion assist springs - expanded metal construction - 1 or 2 piece design
