LAWNMASTER PRO

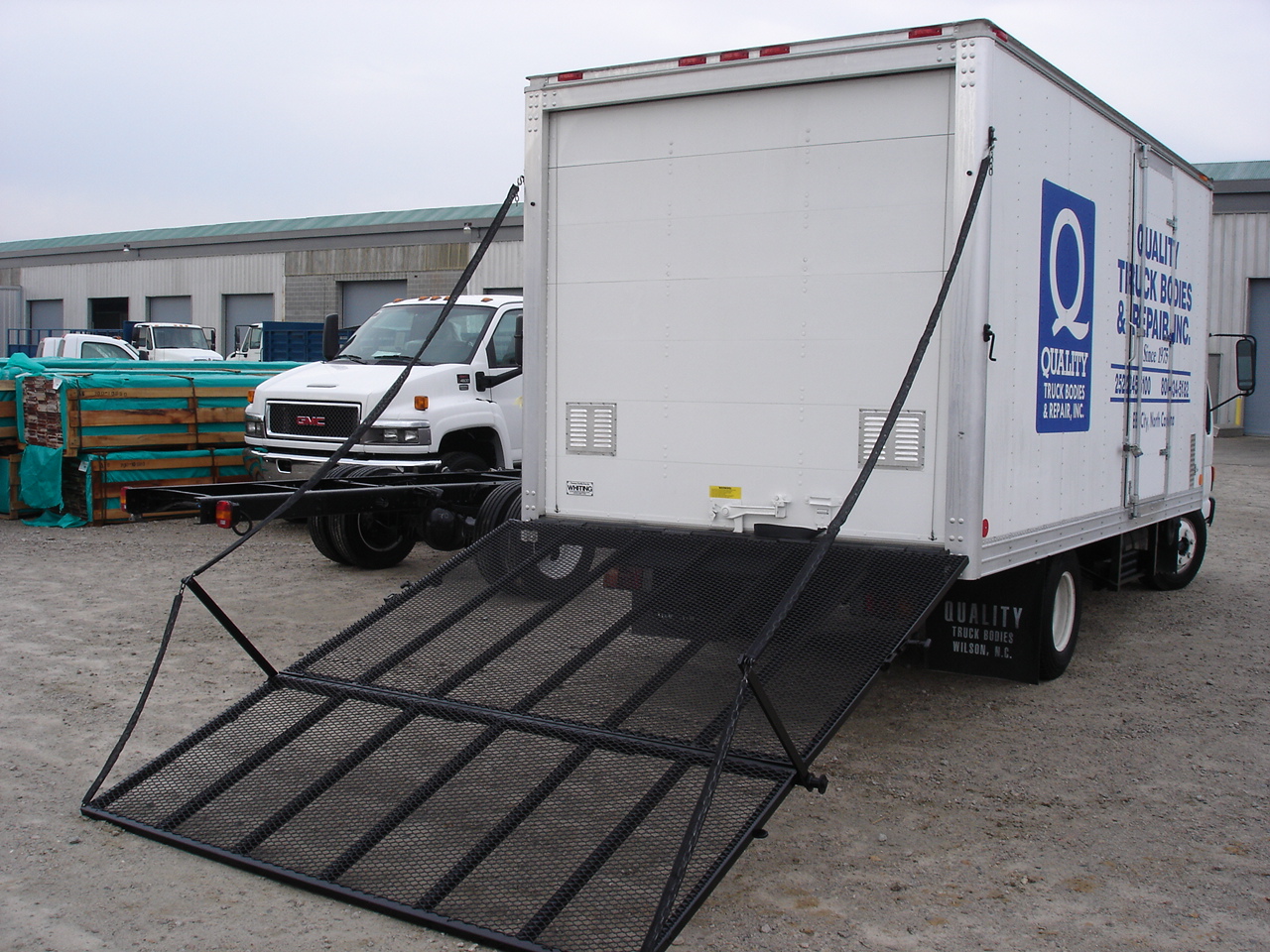

Quality Truck Bodies latest improvement to the Lawnmaster II has given development to the Lawnmaster Pro! This body features all the same high standards. The Lawnmaster Pro features a hydraulically operated double-folding ramp attached to the rear of the body thus giving you 4’ more of usable space that the Lawnmaster II does not have.

CLICK HERE TO SEE MORE PICS

CLICK PIC ABOVE TO SEE VIDEO
misc 052 misc 059 misc 071

Standard Specifications & Equipment:

Dimensions (Inside):

Any length X either 90-3/4” or 96-3/4” width; choice of 84”, 90”, 96”, 102” or 108” height

Exterior:

Smooth .040” pre-painted white aluminum; extruded aluminum corner posts, roof radius, and upper and lower side rails

Roof:

Mill-finished aluminum roof

Side Posts:

2” extruded aluminum Z-posts on 16” centers

Roof Bows:

2” extruded aluminum H-beams on 24” centers

Floor:

1/8” Treadplate steel

Interior Lining:

3/8” full-height plywood liner (sides and front walls)

Rear Door:

Premium 3/4” roll-up rear door

Understructure:

4” formed steel channel crossmembers on 12” center and 3” steel structural channel longitudinal runners.

Hydraulic Ramp/Gate

9’ double-folding hydraulic operated gate/ramp

Popular Options & Accessories:
  • Undermount toolboxes
  • Tie-downs affixed to floor or side posts
  • Translucent roof
  • Shelving
  • Shovel rack
  • Gas can holder
  • Trimmer rack
  • Custom cabinetry

Call today to discuss your unique transportation needs with one of our experienced representatives!
